Our Design 30 RW is the perfect WC cubicle system for all dry area uses. It impresses with its timeless classic design and excellent value for money. The system is made of a high-strength solid chipboard - naturally formaldehyde-free - with a scratch- and abrasion-resistant melamine resin coating. The edges of the panels are protected with a lip. The edges are not glued but welded using the laserTec process. This makes them more durable than conventional edges and gives the impression of being cast from a single mould.
-
Products
-
WC cubicles
-
Design 30 WC cubicles
- 30 RW WC cubicle
Design 30 RW WC CUBICLE
With visible aluminium stop profiles
Technical Specifications
Frontside

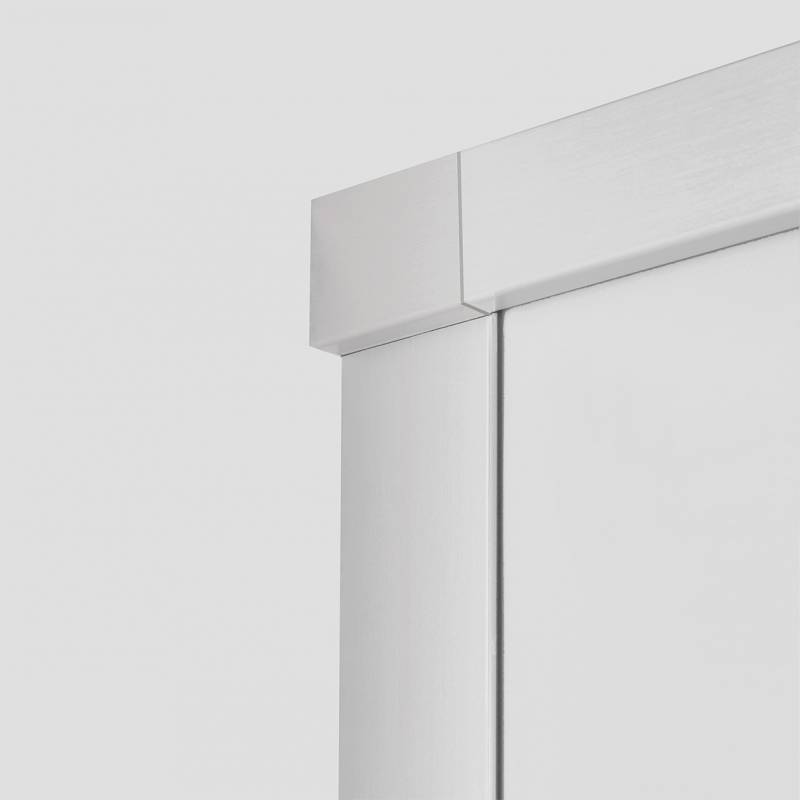

Panel material made of 30 mm melamine-coated solid chipboard. All visible edges are seamlessly coated with laser edging. An all-round aluminium cover profile, 43 x 20 mm, which runs across the entire frontside, ensures the system is extremely stable. In the area of the wall connections, this is provided with aluminium cover caps to achieve a clean finish. Wall connections with aluminium U-profiles 33 x 30 mm are used to compensate for structural unevenness.
Doors
Made of the same material as the frontside and impact-resistant. All visible edges are seamlessly coated with laser edging. All corners and edges are rounded to a radius of 3 mm. Door stop profile made of aluminium 38 x 18 mm, with inserted rubber seal on the lock side to ensure quiet closing of the door.
WC cubicles
Made of the same material as the frontside. All visible edges are seamlessly coated with laser edging. The WC cubicle is fixed to the wall and frontside with a U-profile, 33 x 30 mm.
Panel material
Do you need WC systems for dry and wet areas and want to fit out the rooms in the same styles? Our NR wet area system is totally waterproof and is visually identical to the RW dry area system. The perfect concept for a uniform appearance.
- Made of 30 mm melamine-coated solid chipboard
- Visible edges with laser edging
- Suitable for normal use in dry areas
Seamless laser edging
- Perfect look
- More durable than conventional edges
- Suitable for normal use in dry areas
- Laser welding without conventional hot melt adhesive
- Significantly better adhesion
- No visual joint between edge and panel
- Meets the highest quality requirements
- Less sensitive to dirt than conventional edges
Colour range
Panels standard colours
Panels special colours with surcharge. Delivery time approx. 6 weeks.
Panels special colours mirror gloss for 30 RW, 30 FT and 40 FB with surcharge
Profiles and accessories standard colours
Downloads
“HIGH quality” is our normal
Perfect design as standard
We highly value stable, durable and vandalism-proof designs. Triple knuckle stainless steel hinges are fitted as standard in every installation. High-quality aluminium profiles and nylon accessories are also available in various colours at no extra charge. You can also choose between 12 standard panel colours. All visible edges are finished with a laser edging. This process is unique in the cubicle industry and highlights once again the quality of our products.
Highlights: Triple knuckle stainless steel hinges with brass pin · 12 standard and 18 special panel colours · 7 colours for nylon fittings · 8 colours for aluminium profiles and stainless steel hinges · Visible panel edges with laser edging · Short delivery times · TÜV approved
