Our benches GA are the ideal equipment for changing rooms and fit perfectly to the design and colour range of our lockers and cubicles. They are suitable for wet areas and indestructible. The length of the benches can be chosen individually. For widths over 1990 mm several seats or backrests are used.
-
Products
-
Benches & hook rails
- Benches design GA

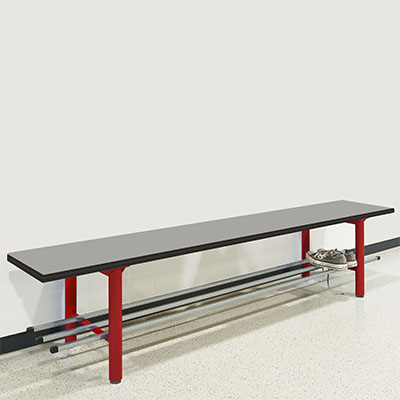

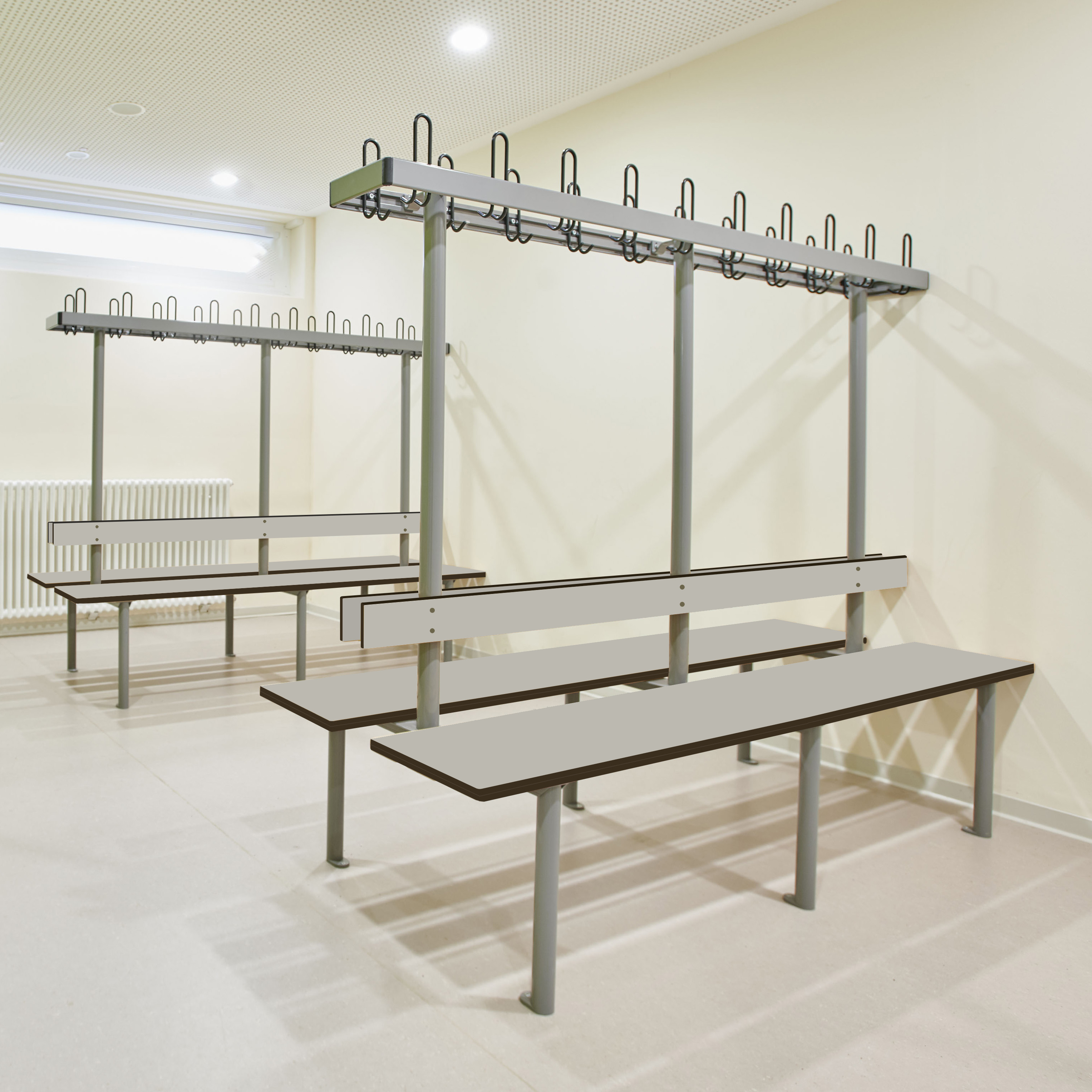

Design GA changing room benches
Extremely robust · Versatile · Comfortable
Versions
Technical Specifications
Construction
The bench frames are made of aluminium round profiles, ø 42 mm, and the bench crossbars of special aluminium profiles. Adjustable glides without floor mounting serve as floor endings as standard or mounting plates for floor mounting at an extra charge.
For wall mounted benches 13 mm HPL brackets with rounded edges are used. Wall connections by solid aluminium brackets.
Seats
13 mm water resistant HPL-Panels with coarse matt surface on both sides, from 600 mm length doubled to 26 mm.
Shoe rackets
Consist of galvanised shelf profiles with black end caps and are available at extra cost.

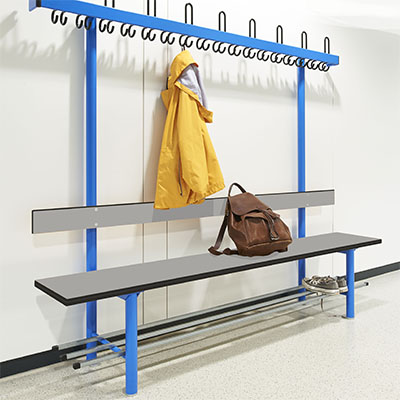

Hook rail technical specifications
Hockrail
Made of aluminium, 60 x 24 mm
Hooks
Hat and double coat hooks made of 10 mm thick steel, powder-coated in black
All edges, corners and hooks are rounded in accordance with the safety regulations for cloakrooms as per DIN 7917 and the safety regulations as per GUV-SR 2001.
Construction
- Seat made of 13 mm thick HPL panel; from 600 mm length doubled to 26 mm
- Backrest made of 13 mm thick HPL panel
- Frame made of coated aluminium profiles
- Suitable for the highest demands in wet areas
Colour range
Panels standard colours
Panels special colours with surcharge. Delivery time approx. 6 weeks.
Profiles, hockrails, aluminium brackets standard colours
